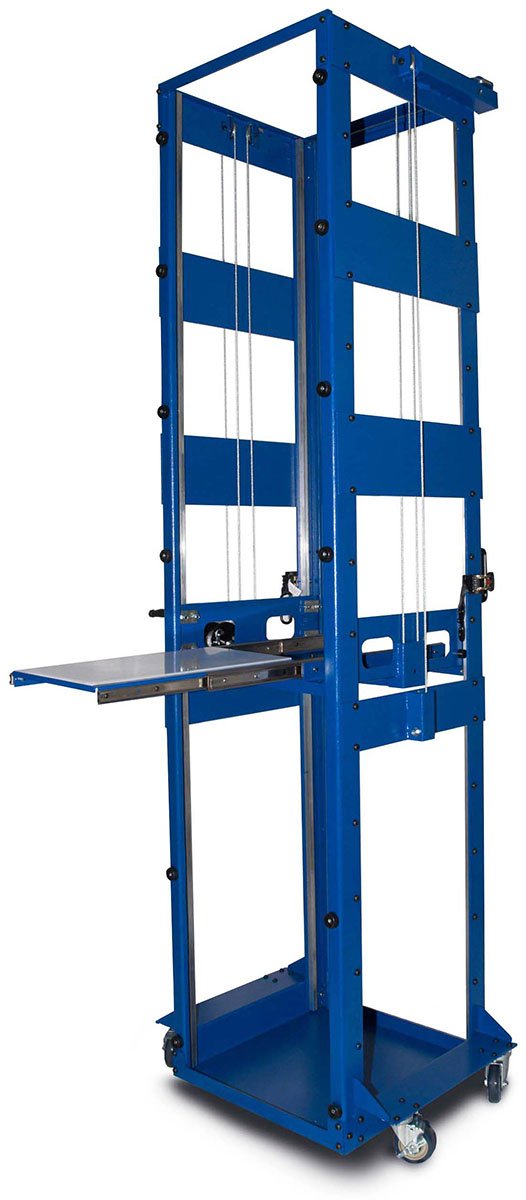

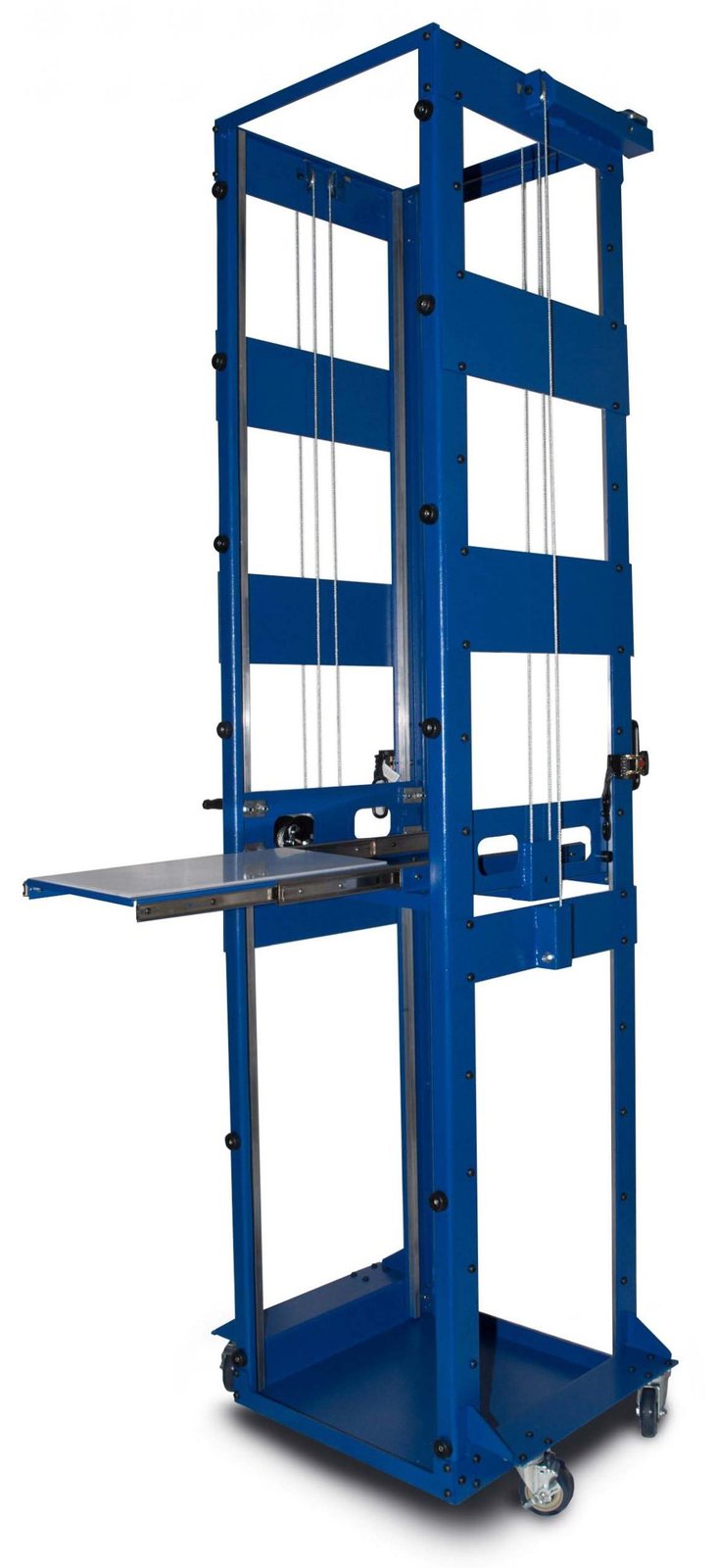

RL600C
Custom-height lift for container PODs and low doorways.
Modular and container data centers do not share a standard door. The RL600C is built to the height you specify so a single technician can roll 650 lb through a POD doorway and land it in the cabinet. Aluminum frames and outdoor wheels are available when the job leaves the raised floor.
Pricing is quoted in USD.
- Capacity
- 650 lb
- Lift
- Built to order, 50"–114" unit height
- Drive
- Manual
- Crew
- 1 technician
What it does
- Built to the doorway and RU height of the site
- Same open-back 24" insertion geometry as the 600RS
- Optional lightweight aluminum frame
- Rugged wheels for gravel and yard work
- Winch adapter for a cordless drill
- Safety auto-brake on release
Options
- Aluminum frame
- Outdoor / gravel wheels
- 23" adapters
- Drill-drive winch
| Lifting capacity | 650 lb |
|---|---|
| Lifting height | Custom-built to the height the customer requires, from 50" to 114" unit height. Example: for 114" battery containers, the unit is 114" and lifts to 108". |
| Rack size | 19" standard, 23" with adapters |
| Insertion distance | 24" |
| Insertion clearance | 1.70" |
| Spin radius | 42.2" aisle |
| Width | 28" |
| Depth | 25" |
| Weight | 350–390 lb depending on height |
| Lift system | Safety auto-brake hand winch |
| Finish | Powder coat, nickel hardware, stainless slides |
| Freight | 32 × 37 × H88", ~420 lb |
Equipment lift
RL600C against a typical server lift
The RL600C is the same equipment job as the 600RS; 650 lb, open back, 24″ into the rails; built to the doorway and cabinet height you actually have, including 114″. It is not a cabinet mover.
RL600C
Typical server lift
What it moves
One device through a POD doorway and into the cabinet.
One device, if the lift fits the door.
Capacity
650 lb
Read their data plate.
Into the rack
24″, same geometry as the 600RS
About 6″ on a general-purpose lift
Height
Built to the doorway, including 114″
A fixed catalog height that may not clear the door
Aisle
360° inside a 42.2″ aisle
A long base often will not turn in two tiles
Frame
Open back. Optional aluminum and outdoor wheels.
Closed back. Raised-floor casters.
Crew
1 technician
Often a second person on a heavy chassis
Made
USA
Check the builder
Moving the cabinet itself, equipment still in it, is the RL3500S and RL5000S comparison.
