Electric tugMade in USA
RL1065
Compact 5,000 lb tugger for halls, plants, and docks.
The RL1065 is the heavier sibling in the RackLift® Express tug line. Compact enough for corridors and manufacturing aisles, rated to 5,000 lb on a level floor, with hi/low speed (1.5 / 3.0 mph), electromagnetic parking brake, dead-man stop, and an internal UL/cUL/CE charger. Custom hitches for single or multiple carts; an HD variant is available when the floor is meaner than a data hall.
Pricing is quoted in USD.
- Capacity
- 5,000 lb
- Lift
- Tow only
- Drive
- Battery-electric
- Crew
- 1 technician
What it does

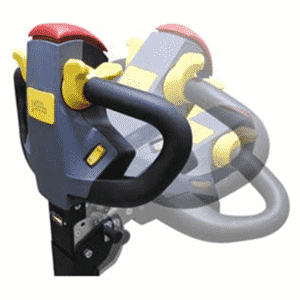

- Award-winning adjustable tiller with thumb-wheel
- Electromagnetic parking brake
- Dead-man controlled stop
- Standard 68 dB horn, optional 115 dB
- Puncture-proof non-marking drive wheel
- Onboard smart charger, ~4 hour recharge
Options
- RL1065-HD high-power variant
- Industrial 115 dB horn
- Multi-cart hitch sets
| Maximum load | 5,000 lb on flat surface |
|---|---|
| Grades | To 30° at reduced load |
| Speed | 0–1.5 mph low / 0–3.0 mph high |
| Length / width | 25" / 24" |
| Battery | 70 Ah AGM, ~8 hours |
| Recharge | ~4 hours, 120/240 VAC |
| Noise | < 65 dBA |
| Ingress | IP42 unit, IP54 controller |
| Operating temp | −40 °F to 158 °F |
| Chassis | Welded steel, powder coat |
