Cabinet lifterMade in USA
RL3500S
Manual cabinet mover. Fully loaded. One person.

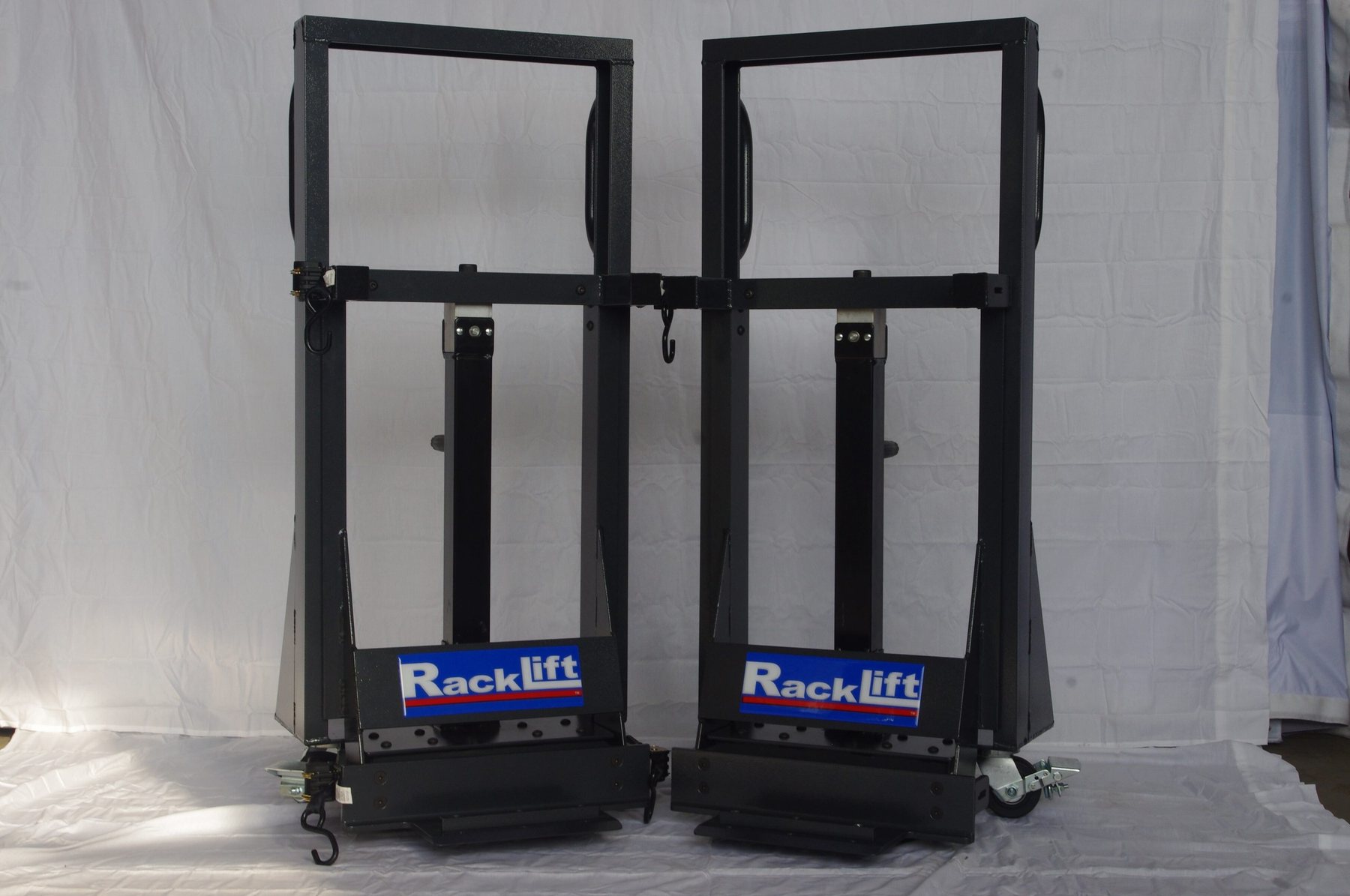

The RL3500S is how a single technician relocates a live cabinet without pulling every server. Place a unit on each end, strap, crank the frictionless ball-screw, and the load comes off the tiles. Eight dual non-marking antistatic casters spread the weight across a raised floor. The 2025 update adds four integrated E-Track tie-downs. Optional shoes and pinch blocks cover side-lift and 31-inch cabinets. Manufactured in the USA.
Pricing is quoted in USD.
- Capacity
- 5,000 lb (6,000 lb stainless option)
- Lift
- 13"
- Drive
- Manual
- Crew
- 1 technician
What it does
- Two synchronized lifting units, one per cabinet end
- Frictionless ball-screw / high-ratio gearing
- Load holds when the crank is released
- Eight dual non-marking antistatic casters

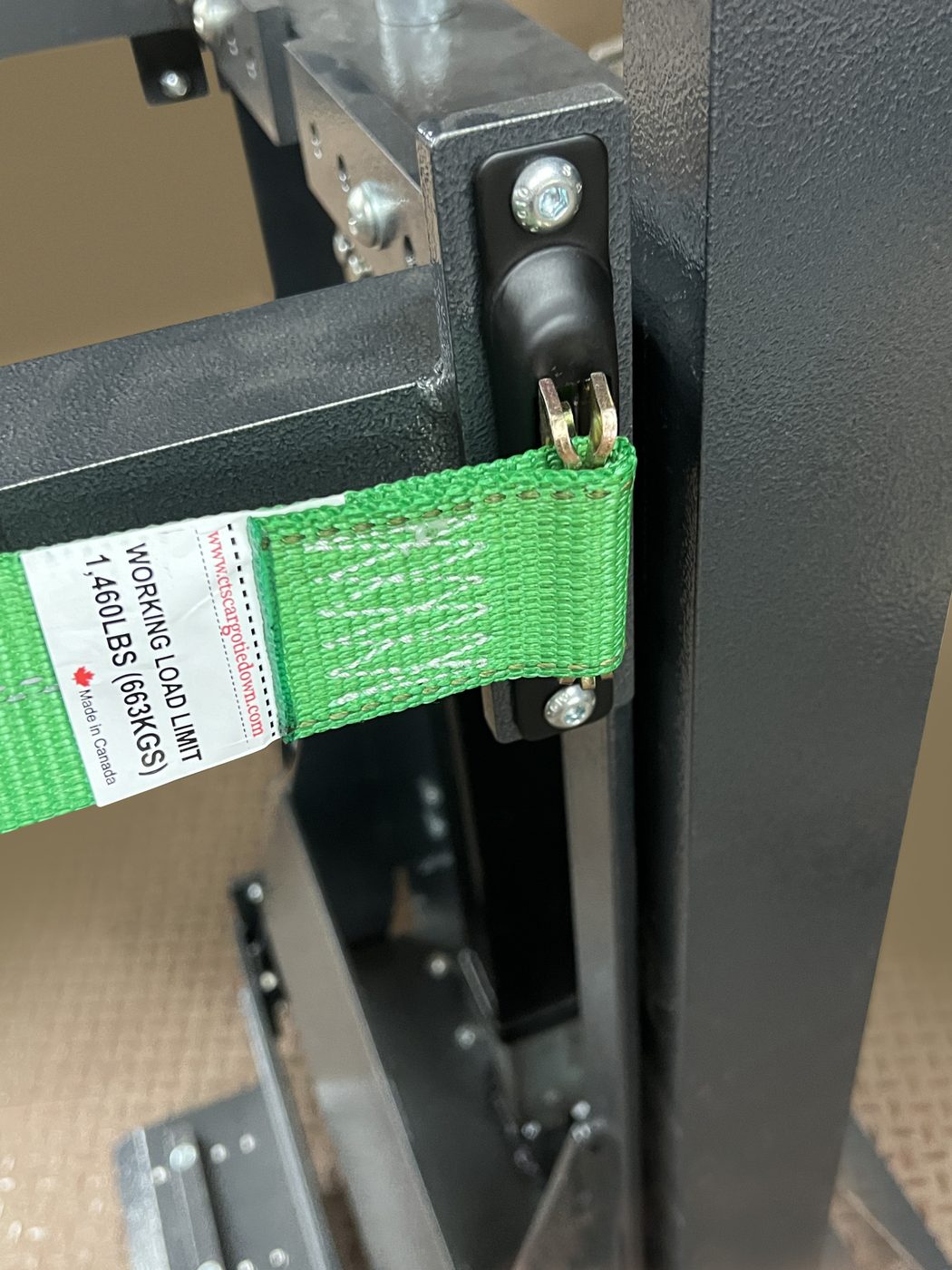

- Four integrated E-Track tie-downs
- Fits standard doorways and tight aisles
Options

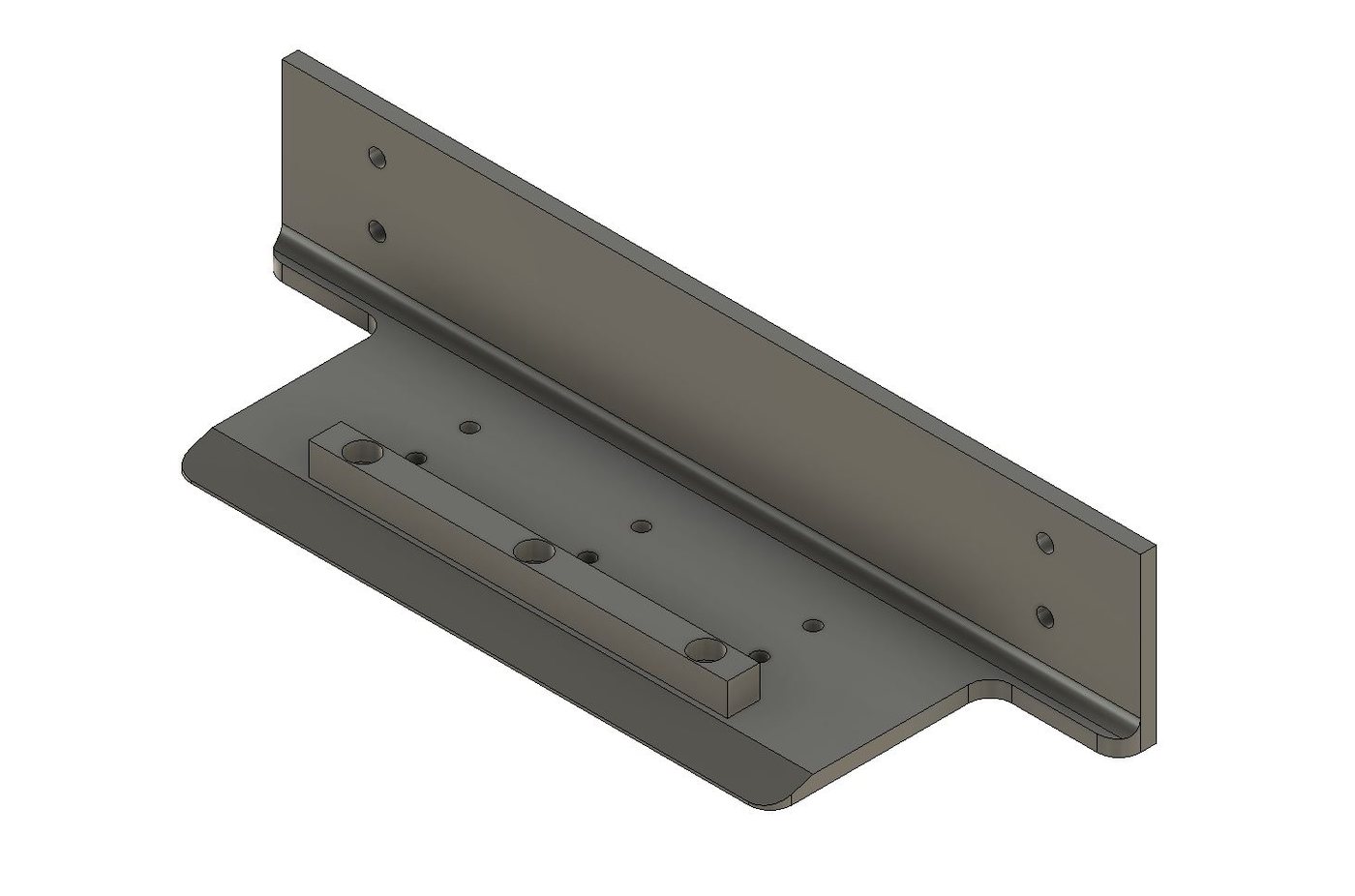

- Shoe + upper pinch blocks for side lift
- 31" cabinet width kit
- Pair with RL2000T tug
| Lifting capacity | 5,000 lb standard, 6,000 lb with optional stainless upgrade |
|---|---|
| Lifting height | 13" |
| Rack size | Any cabinet; 19" or 24" standard |
| Insertion clearance | 1.70" |
| Spin radius | Rack depth + 14" |
| Height | 48" |
| Width | 23" |
| Depth | 23" |
| Weight | 114 lb per side |
| Manufactured | USA |
| Construction | 704 aluminum, zinc powder coat |
| Casters | Eight dual non-marking antistatic |
| Freight | Wooden crate on pallet, 320 lb |
