600RS
Open-back switch and server lift for tight aisles.

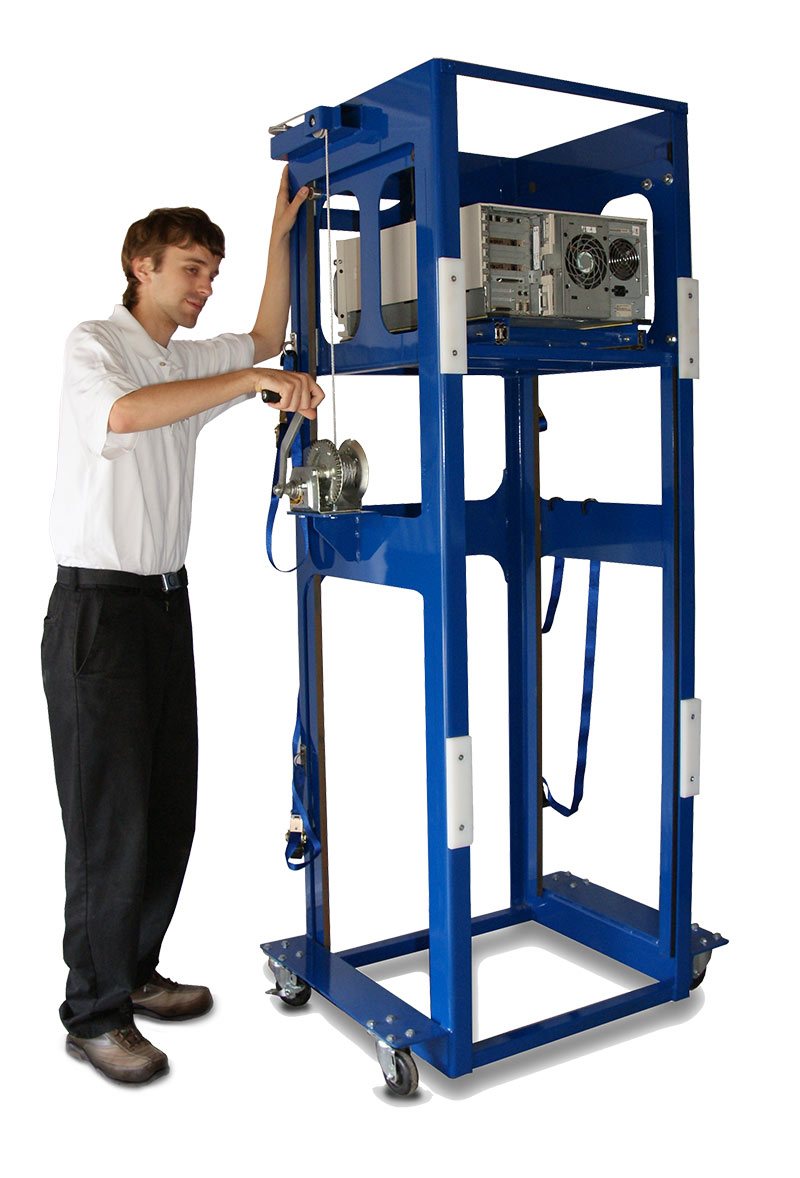

The 600RS is the original RackLift® device lifter: an open-back frame that keeps heavy, unbalanced loads centered while a bi-directional sliding table feeds equipment from the front or the rear of a cabinet. A high-ratio safety winch does the lifting. Wheel brakes and cabinet straps do the rest. Built for containment aisles where a warehouse lift simply will not fit.
Pricing is quoted in USD.
- Capacity
- 650 lb
- Lift
- to 40 RU
- Drive
- Manual
- Crew
- 1 technician
What it does
- Open-back frame for deeper and taller devices

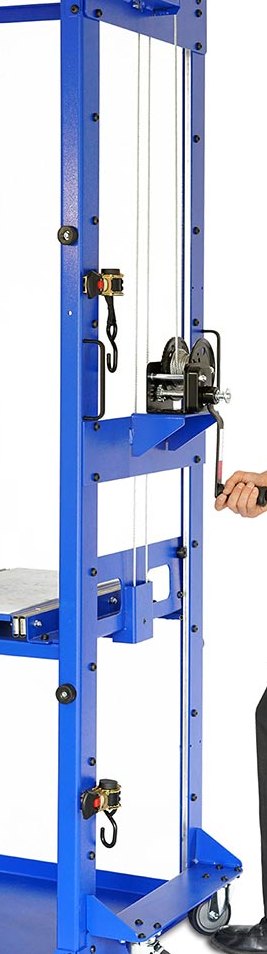

- Side-balanced, double-cabled lift table

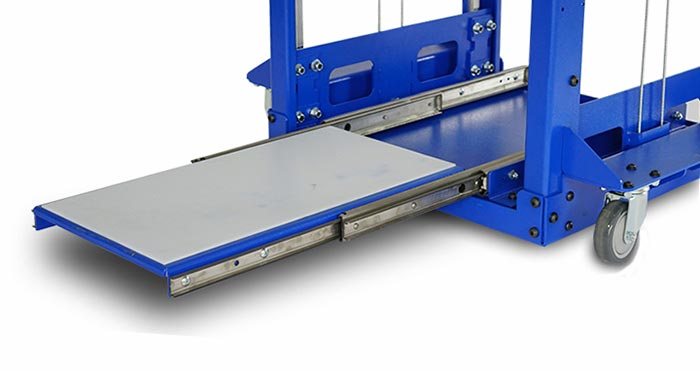

- Bi-directional sliding tray with lock-out

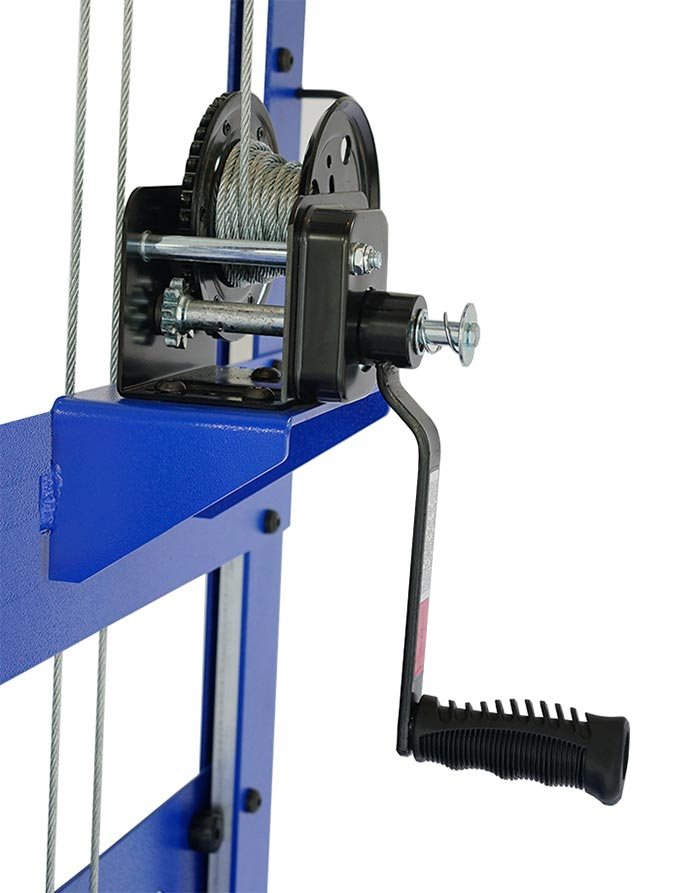

- Automatic winch brake on handle release
- Wheel brakes and cabinet safety straps
- Powder coat, nickel-plated hardware, stainless slides
Options
- 23" rack adapter plates
- Custom height for extra-tall cabinets
| Lifting capacity | 650 lb |
|---|---|
| Lifting height | To 40 RU |
| Rack size | 19" standard, 23" with adapters |
| Insertion distance | 24" into receiving rack |
| Insertion clearance | 1.70" |
| Spin radius | 42.2" aisle |
| Height | 82.75" |
| Width | 28" |
| Depth | 25" |
| Weight | 370 lb |
| Lift system | Safety auto-brake hand winch |
| Finish | Powder coat, nickel hardware, stainless slides |
| Freight | 32 × 37 × 88", 370 lb |
Equipment lift
600RS against a typical server lift
The 600RS lifts equipment into the rack; a server, switch, or battery. It does not lift the cabinet. The RL3500S and RL5000S are that job. Here the 600RS is set next to a typical server lift, not next to a cabinet mover.
600RS
Typical server lift
What it moves
One server, switch, or battery onto the rails.
One device onto the rails. Not a cabinet.
Capacity
650 lb
Read their data plate. A closed-back lift often cannot hold an oversized, unbalanced switch.
Into the rack
24″, from the front or the rear
About 6″ on a general-purpose lift
Aisle
360° inside a 42.2″ two-tile aisle
A long base often will not turn in two tiles
Frame
Open back. The chassis can overhang both ends.
Closed back. An overhanging load does not sit on the table.
Drive
Hand winch. Brake sets when the handle is released. No hydraulics.
Often a short platform, and a second person once the switch is heavy.
Crew
1 technician
Frequently two people on a 300–650 lb device
Made
USA
Check the builder
Moving the cabinet itself, equipment still in it, is the RL3500S and RL5000S comparison.
