Cabinet lifterMade in USA
RL5000S
Battery-electric cabinet lift. Switch up, switch down.

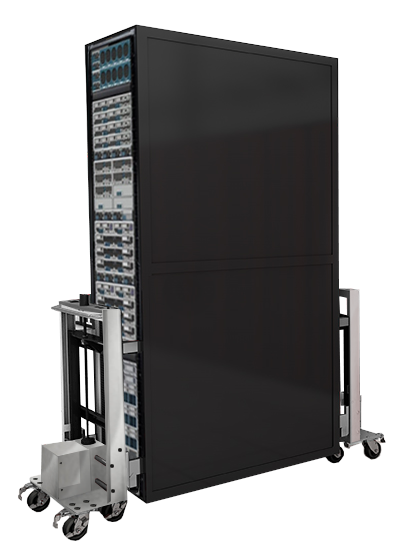

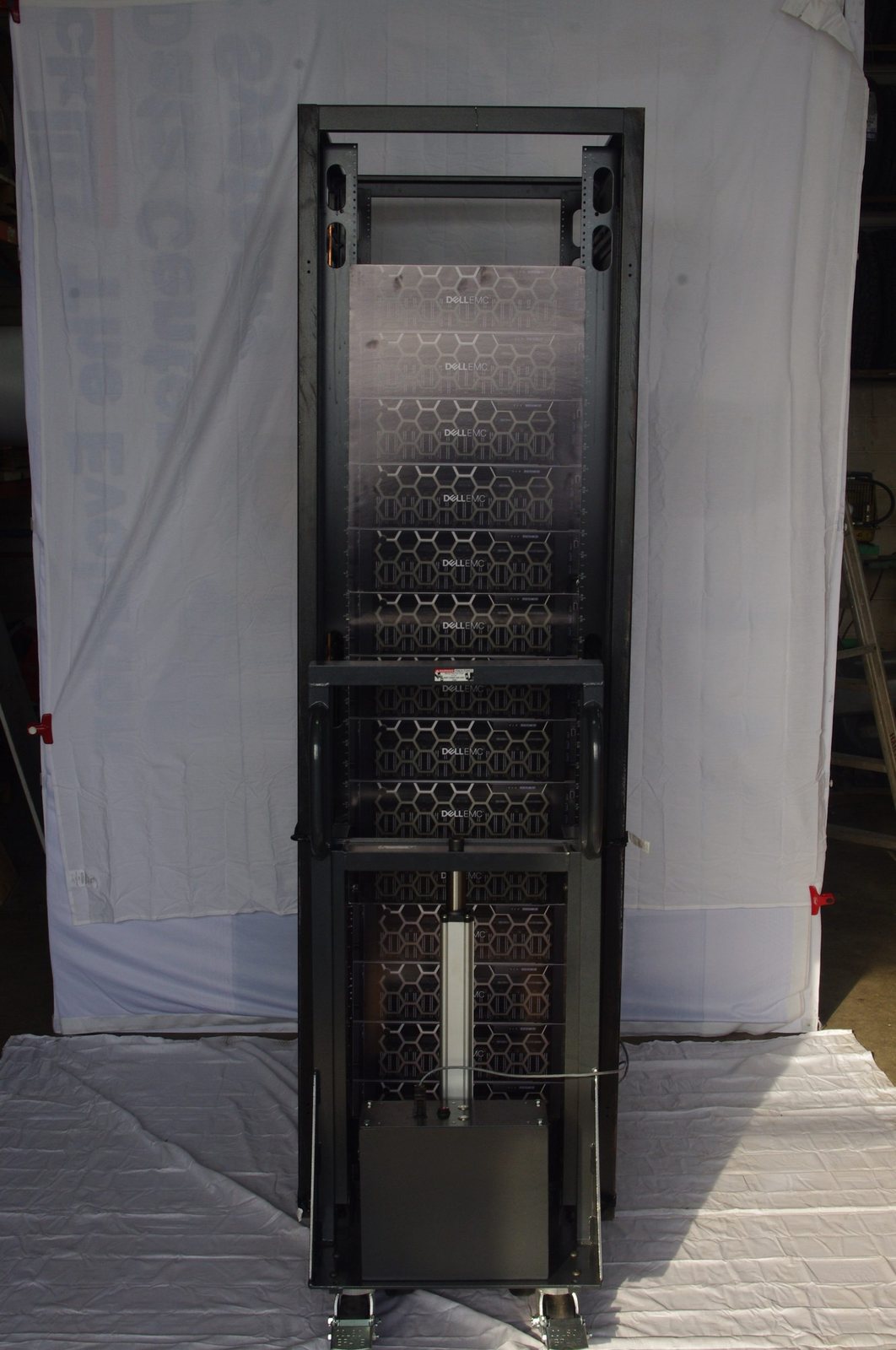

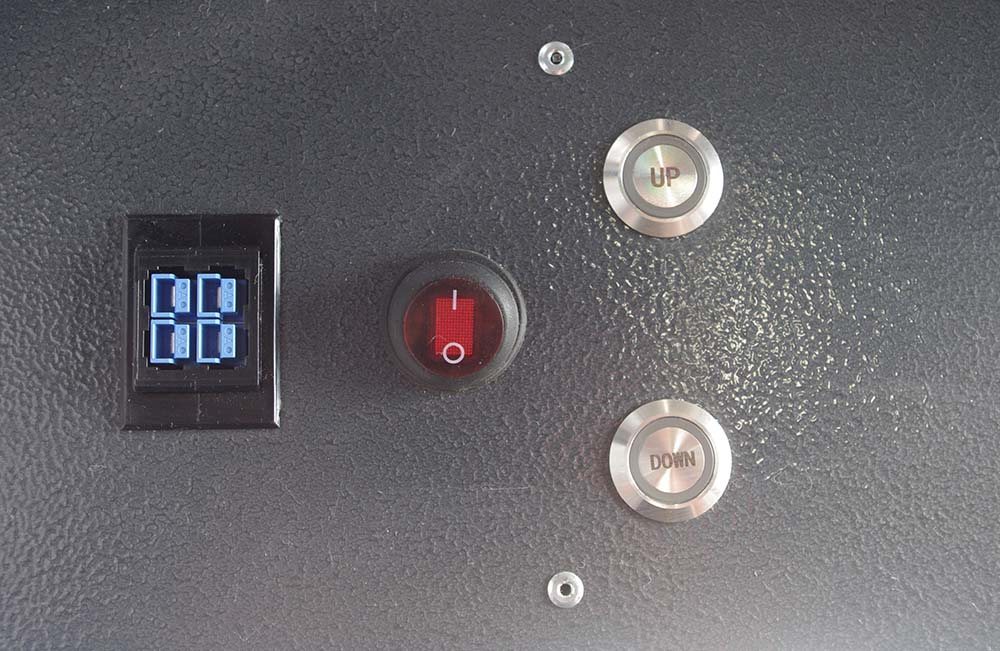

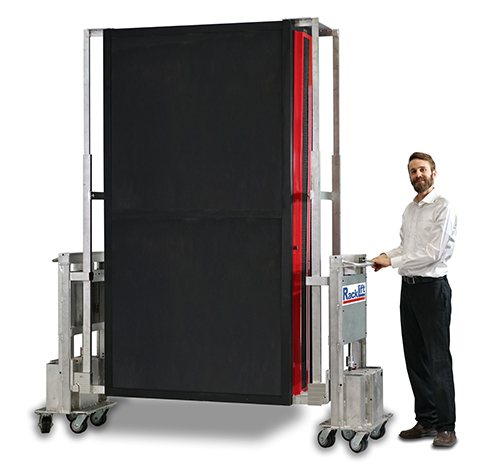

The RL5000S is two lightweight 704-aluminum units that clamp to each end of a fully loaded cabinet: staged equipment, battery UPS, even CRAC units. A control cable keeps the lift synchronized. The operator uses a simple up/down switch; a smart charger holds the batteries, and a status light tells you the state of charge. Retractable straps, auto-lock winch, and a brake that sets when the button is released. Custom 30-inch lift available for pallet transfer. Manufactured in the USA.
Pricing is quoted in USD.
- Capacity
- 5,000 lb (6,000 lb stainless option)
- Lift
- 13" (30" custom)
- Drive
- Battery-electric
- Crew
- 1 technician
What it does
- Safety DC battery winch with auto-lock
- Synchronized lift via control cable
- Retractable safety straps
- Eight Colson casters, 1,500 lb each
- Smart charger, 115 V or 230 V, no overcharge
- Brake sets when the control is released
Options
- 30" pallet-transfer lift
- Custom shoes for specialty cabinets
- 31" pinch-block kit
- HVAC / battery lift accessories
- Pair with RL2000T tug
| Lifting capacity | 5,000 lb standard, 6,000 lb with optional stainless upgrade |
|---|---|
| Lifting height | 13" (30" custom) |
| Rack size | Any cabinet |
| Insertion distance | 6" via foot adapter |
| Insertion clearance | 1.70" |
| Spin radius | Rack depth + 13" |
| Height | 46 3/8" |
| Width | 23.25" |
| Depth | 14.25" |
| Weight | 125 lb per side |
| Manufactured | USA |
| Lift system | Safety DC battery winch, auto-lock |
| Finish | Nickel-plated hardware / 704 aluminum |
| Freight | 46" × 28" × 48", 325 lb set |
